Laser & waterjet cutting
Our priority is to provide you with high-quality, precision cutting with a quick turnaround. Before we begin, we take the time to analyze your project needs, determining whether fiber laser cutting or waterjet cutting will work best.
Call us today for a free cutting quote
Our experience combined with our advanced technology and machinery provides us with the ability to cut metals (ferrous and nonferrous), plastics, rubbers and stone, as well as specialty metals such as titanium and Inconel. Call us today for a free cutting quote or to schedule a tour of our facility at 608.269.7111.
all-in-one shop
At Triple R Industries, we are proud to be an all-in-one shop. Along with cutting, we perform other services in-house, including:
Forming
Welding
CNC Milling
CNC Turning
OUR CUTTING MACHINES AND CAPABILITIES
Bystronic Bysprint Fiber 3015
Fiber Laser Beam, 5ft x 10ft
- Material Capabilities
- Carbon steel
- Stainless Steel
- Aluminum
- Copper
- Brass
- Galvanized
- Thickness Range
- .012 to .375
- .03 to .375
- .03 to .25
- .03 to .25
- .03 to .25
- .03 to .188
- Tolerance Range
- .005 to .01
- .005 to .01
- .005 to .01
- .005 to .01
- .005 to .01
- .005 to .01
BySmart Fiber 3015 10KW Laser
Fiber Laser Beam, 5ft x 10ft
- Material Capabilities
- Carbon steel
- Stainless Steel
- Aluminum
- Copper
- Brass
- Galvanized
- Thickness Range
- .012 to 1.181
- .03 to 1.181
- .03 to 1.181
- .03 to. 0.472
- .03 to .591
- .03 to .188
- Tolerance Range
- .005 to .01
- .005 to .01
- .005 to .01
- .005 to .01
- .005 to .01
- .005 to .01
ByTrans 3015 Cross S
- Specs
- Nominal Sheet Size
- Load Sheet Metal Thickness
- Unload Sheet Metal Thickness
- Maximum Sheet Weight
- Loading Carriages
- Large Parts Removal
- Insert Protective Separators
- 3000 × 1500 mm
- 0.8–25 mm
- 0.8–25 mm
- 980 kg
- 25 mm/s
- x
- x
Flo Mach 3
Waterjet, 6ft x 10ft
- Material Capabilities
- Carbon steel
- Stainless Steel
- Aluminum
- Galvanized
- Brass
- Copper
- Stone
- Glass
- Plastic
- Rubber
- Thickness Range
- .06” to 6”
- .06” to 6”
- .06” to 6”
- .06” to 6”
- .06” to 6”
- .06” to 6”
- .5” to 4’
- .25” to 2”
- .125” to 6”
- .125” to 5”
- Tolerance Range
- .002 to .02
- .002 to .02
- .002 to .02
- .002 to .02
- .002 to .02
- .002 to .02
- .005 to .02
- .005 to .02
- .005 to .02
- .005 to .02

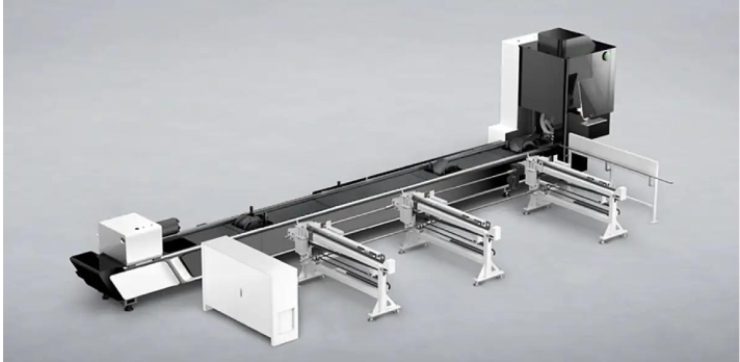

Bodor K230 3KW Tube Laser With K-Loader
- Material Capabilities
- Carbon steel
- Stainless Steel
- Aluminum
- Copper
- Brass
- Galvanized
- Thickness Range
- .012 to .375
- .03 to .375
- .03 to .25
- .03 to .25
- .03 to .25
- .03 to .188
- Tolerance Range
- .005 to .01
- .005 to .01
- .005 to .01
- .005 to .01
- .005 to .01
- .005 to .01
